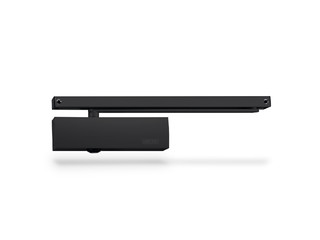

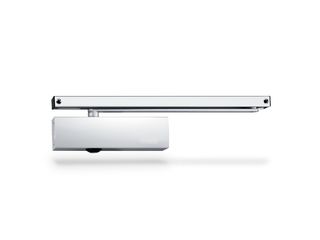

TS 3000 EN3 * Overhead door closer with guide rail for single leaf doors with a leaf width up to 950 mm
- Fixed closing force of EN3
- Can be used for right and left hand doors without conversion
- Hydraulic latching action which accelerates the door shortly before it is closed
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 950 mm leaf width
- Door leaf and transom installation on the hinge and opposite hinge side
Technical data
TS 3000 EN3 | |
Closing force in accordance with EN 1154 | EN 3 |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 950 mm |
Leaf width (max.) | 950 mm |

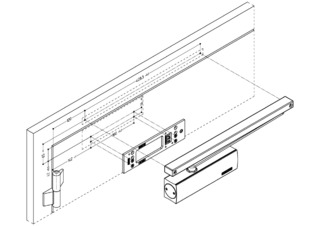

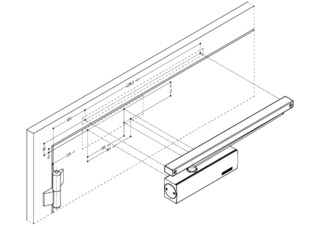

Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side, Transom installation hinge side, Door leaf installation opposite hinge side |
Opening angle (max.) | 180 ° |
Suitability for fire protection doors | Yes |
Closing force adjustable | No |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | No |
Hold-open function | Optional |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
