LED sensor foot switch * Switch for activating automatic doors

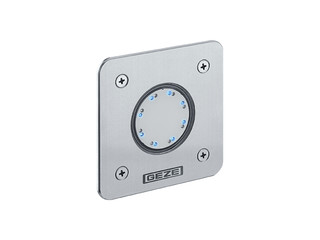

LED sensor foot switch
  • Touch-sensitive capacitive push button with blue/red LED illumination
  • Long service life - more than 100 million hystereses
  • Continuously illuminated blue (can be switched off), illuminated red when touched
  • Very high IP rating of 69K
  • Shock-resistant and protected from vandalism by protection degree IP08
Contact us

Application Areas

  • For convenient activation of automatic doors from the floor
  • Preferred for use in restaurants or hotel areas

Technical data

LED sensor foot switch
Dimensions 100 x 100 x 17 mm
Current consumption 30 mA
Output PNP transistor output
IP rating IP69K
Type of installation Floor
Connection type Cable prepared for connection to screw terminal
Connector cable length 2000 mm
Material Stainless steel
Service temperature -30 - 80 °C
