TS 5000 ISM

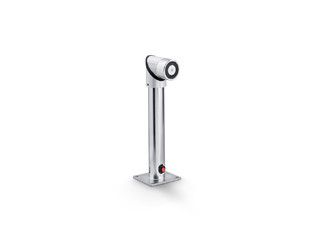

Hold-open magnet flexible 335 mm * For wall or ceiling installation with stand pipe 335 mm

Hold-open magnet wall installation Hold-open magnet wall installation, swivelling magnetic head, base length 335 mm
  • High retention force of 490N
  • Concealed line-feed and robust design
Contact us

Application Areas

  • Use for hold-open angles up to 180°, ideal for exact holding open
  • Use in harsh environments such as industrial buildings
  • Places of public assembly and highly frequented sports venues
  • Approved for GEZE hold-open systems
  • Wall, ceiling or floor installation

Technical data

Hold-open magnet flexible 335 mm
Dimensions 90 x 80 x 335 mm
IP rating IP65 Magnet; IP20 connection
Type of installation Wall, Ceiling, Floor
Line-feed Below
Area of application Inside
