Ident-No.
|
Designation
|
Description
|
Face plate dimensions
|
Dimensions
|
Operating voltage
|
DIN direction
|
Type of installation
|
Side-load
|
Feedback contact door
|
Latch engagement depth
|
Fail-secure
|
IP rating
|
Material
|
Conforms to the EltVTR (guidelines for electronic locking systems)
|
Shape
|

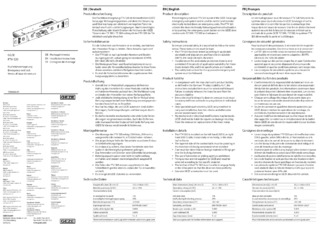

| 158907 |
FTV 320 escape door lock |
Face plate 22 x 220 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
22 x 220 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
rectangular |
| 158908 |
FTV 320 escape door lock |
Face plate 24 x 200 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
24 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
rectangular |
| 158906 |
FTV 320 escape door lock |
Face plate 20 x 200 x 3 mm, round for solid leaf doors (wood) / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
20 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
round |
| 158911 |
FTV 320 escape door lock |
Face plate 30 x 200 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
30 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
rectangular |
| 158914 |
FTV 320 escape door lock |
Face plate with lock latch guide 35 x 200 x 3 mm, rectangular, exchange variant FTÖ 331 / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
35 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
rectangular |
| 158912 |
FTV 320 escape door lock |
Angled face plate 30 x 48 x 220 x 3 mm, rectangular Alternative version FTÖ 331 / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
30 x 48 x 220 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
rectangular |
| 158910 |
FTV 320 escape door lock |
Face plate 28 x 200 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
28 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
rectangular |
| 158909 |
FTV 320 escape door lock |
Face plate 24 x 200 x 3 mm, round for solid leaf doors (steel) / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
24 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
round |
| 158913 |
FTV 320 escape door lock |
Face plate 25 x 200 x 3 mm, rectangular, exchange variant FTÖ 331 / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C |
25 x 200 x 3 mm |
15 x 138 x 37 mm |
24 V DC |
left / right |
in the door frame, in the door leaf |
3000 N |
Yes |
6 mm |
0 |
IP30 |
Precision cast steel |
Yes |
rectangular |
