Scissors OL 90 N * Scissors OL 90 N with standard leaf bracket
- Achieves the full opening width of 170 mm for all leaf heights
- Little space necessary thanks to flat design of the scissors
- Locking in the scissors guarantees a safe leaf locking mechanism
- Unhinging inhibitor on the scissors offers additional safety
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Convenient daily ventilation for rooms and staircases
- Inward-opening rectangular windows with bottom-hung leaves
- Installation on wooden (no Euro-groove), PVC or aluminium windows
- Frame installation
Technical data
Scissors OL 90 N | |
Opening width (max.) | 170 mm |
Leaf width (min.) | 380 mm |
Leaf height (min.) | 250 mm |
Leaf weight (max.) | 80 kg |
Space needed (max.) | 19 mm |
Adjustable opening width (stroke reduction) | Yes |

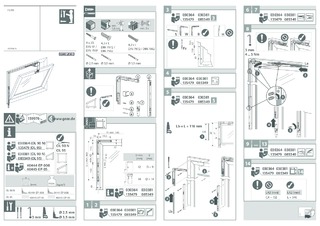

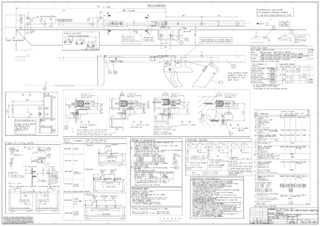

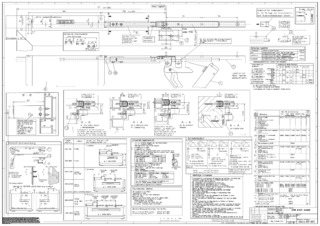

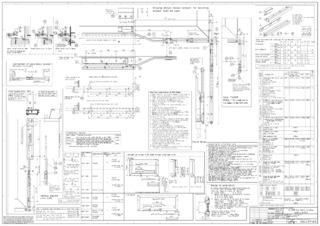

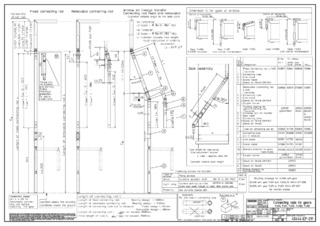

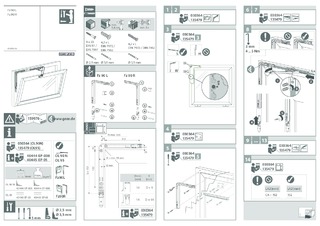

Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Stefan Dauth / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
