RWA 105 NT * Opening and locking system for mullion-transom constructions

RWA 105 NT / OL 370 EN Electrically operated spindle drive in the opening and locking system
  • System solution with profile-mounted E 250 NT spindle drive and a bracket set with locking device
  • Double mechanical locking at the main closing edge by the spindle drive
  • Very few space needed on the frame
  • Large opening width with short spindle stroke in less than 60 seconds
  • Syncro operation with two drives possible for wide window leaves
  • IQ windowdrive - intelligent drive control
Show more
  • Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Contact us

Application Areas

  • Natural ventilation, smoke and heat extraction system, natural smoke and heat extraction device (SHEV)

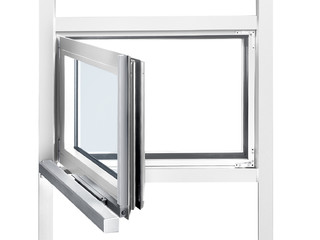

  • Opening and locking of inward opening windows with bottom-, top- and side-hung leaves in mullion-transom façades
  • Installation on wooden, PVC or metal windows

Technical data

RWA 105 NT

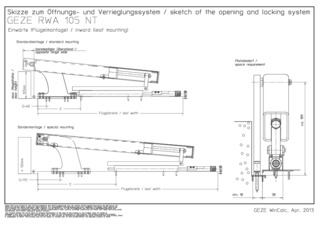

Space needed (min.) Cover frame: 18 mm, leaf: 38 mm, mullion-transom height max. 125 mm
Permissible dimensions of primary closing edge Solo for timber and aluminium frames Depending on stroke
Permissible dimensions of primary closing edge Solo for plastic frames Depending on stroke
Permissible dimensions of primary closing edge Syncro for timber and aluminium frames Depending on stroke
Permissible dimensions of primary closing edge Syncro for plastic frames Depending on stroke
Leaf heights for Solo and Syncro Depending on stroke
Force of pressure (max.) 750 N
Compressive force 750 N
Tensile force 750 N
Panel weight (max.) 30 kg/m²
Voltage at operation 24 V (+30 % to -20 %)
Operating voltage 24 V DC
Current consumption 1 A
Current consumption according to area of application Ventilation (24 V): 0.9 A, RWA (18 V): 1.0 A
Power consumption 22 W
Residual ripple 20 %
Duty rating 30 %
Connector cable length 2 m
Min. core cross section 0.75 mm²
Number of cores 4 cores
Service temperature -5 - 75 °C
IP rating IP65
protection rating III
Locking and additional angle bracket Yes
End position cut-off extended Internal path sensor
End position cut-off retracted Internal path sensor
Overload cut-off Yes
SHEV tested Yes
KNX ability Yes
Bottom-hung window INWARD-opening leaf installation Yes
Side-hung window INWARD-opening door leaf installation Yes
Top-hung window INWARD-opening leaf installation Yes
